用HTML和CSS制作现流行的UI Placeholder

前言

最近在使用facebook, instagram等主流应用经常看到的,即加载内容时的UI placeholer.(骨架设计)

可以给用户一种页面加载速度提升的错觉。如果如图所示。
ui placeholder

制作步骤

步骤1

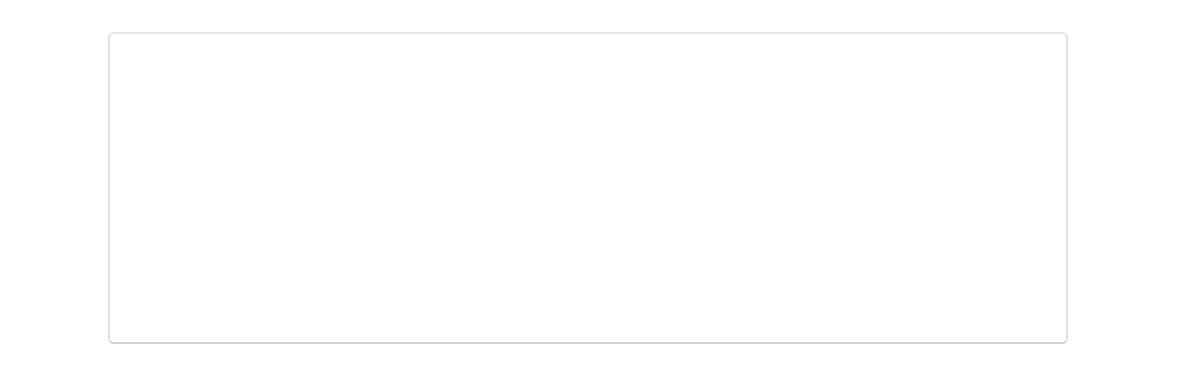

ui-placeholder的容器设计,效果如图所示
null

HTML

<div class="placeholder-wrapper">
    <div class="placeholder-item">
    </div>
</div>

CSS

.placeholder-item {
    background: #fff;
    border: 1px solid;
    border-color: #e5e6e9 #dfe0e4 #d0d1d5;
    border-radius: 3px;
    padding: 15px;
    margin: 0 auto;
    max-width: 480px;
    min-height: 156px;
    box-sizing: border-box;
}

步骤2

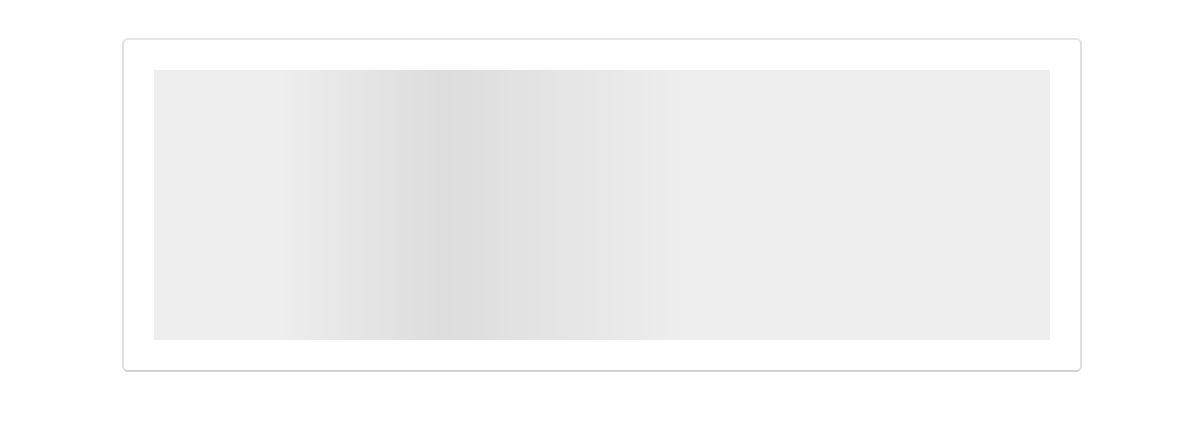

使用css background属性设置背景动画,使用css3的gradient属性设置颜色渐变,效果如图所示

HTML

<div class="placeholder-wrapper">
    <div class="placeholder-item">
        <div class="animated-background">
        </div>
    </div>
</div>

CSS

...
.animated-background {
    background: #f6f7f8;
    background: linear-gradient(to right, #eee 8%, #ddd 18%, #eee 33%);
    background-size: 800px 104px;
    height: 135px;
    position: relative;
}
步骤3

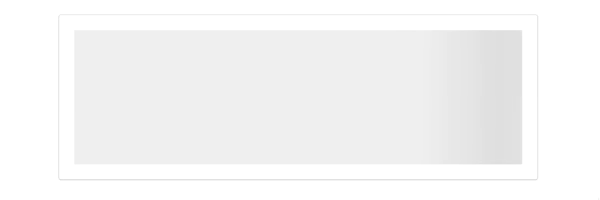

使用动效让在步骤2设置的背景动起来。效果如图所示。

CSS

...
.animated-background {
    animation-duration: 1s;
    animation-fill-mode: forwards;
    animation-iteration-count: infinite;
    animation-name: placeHolderAnimation;
    animation-timing-function: linear;
    background: #f6f7f8;
    background: linear-gradient(to right, #eee 8%, #ddd 18%, #eee 33%);
    background-size: 800px 104px;
    height: 135px;
    position: relative;
}

@keyframes placeHolderAnimation {
    0% {
        background-position: -400px 0
    }
    100% {
        background-position: 400px 0
    }
}

步骤4

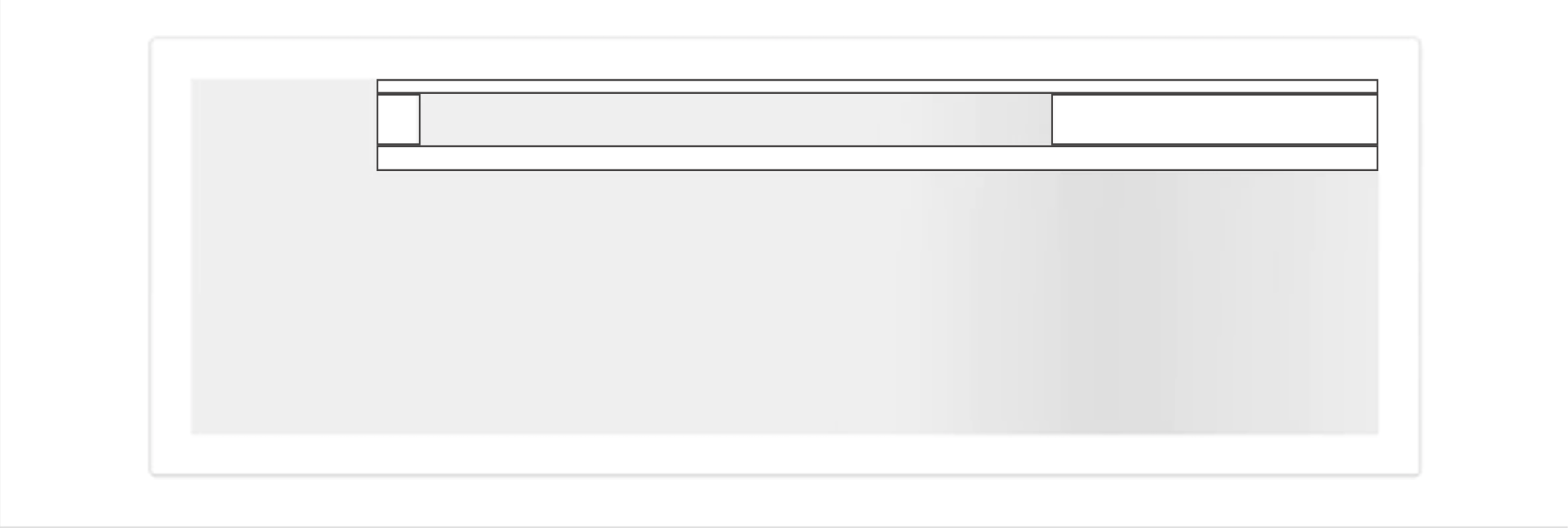

用div配置白色遮罩层,将没有动画效果的区域设置为白色。如右上方第一个横条用div遮罩,原理如图所示。

HTML

<div class="placeholder-wrapper">
    <div class="placeholder-item">
        <div class="animated-background">
            <div class="background-masker head-top"></div>
            <div class="background-masker head-left"></div>
            <div class="background-masker head-right"></div>
            <div class="background-masker head-bottom"></div>
        </div>
    </div>
</div>

CSS

...
.background-masker {
    background: #fff;
    position: absolute;
}

.background-masker.head-top,
.background-masker.head-bottom {
    top: 0;
    left: 70px;
    right: 0;
    height: 5px;
}

.background-masker.head-bottom {
    top: 25px;
    height: 10px;
}

.background-masker.head-left,
.background-masker.head-right {
    top: 5px;
    left: 70px;
    height: 20px;
    width: 15px;
}

.background-masker.head-right {
    left: 325px;
    width: 123px;
}

效果如下图所示。

最终步骤

同理设置其它部位的遮罩区域。效果如图所示。
ui placeholder

HTML

<div class="placeholder-wrapper">
    <div class="placeholder-item">
        <div class="animated-background">
            <div class="background-masker head-top"></div>
            <div class="background-masker head-left"></div>
            <div class="background-masker head-right"></div>
            <div class="background-masker head-bottom"></div>
            <div class="background-masker subhead-left"></div>
            <div class="background-masker subhead-right"></div>
            <div class="background-masker subhead-bottom"></div>
            <div class="background-masker content-top"></div>
            <div class="background-masker content-first-end"></div>
            <div class="background-masker content-second-line"></div>
            <div class="background-masker content-second-end"></div>
            <div class="background-masker content-third-line"></div>
            <div class="background-masker content-third-end"></div>
        </div>
    </div>
</div>

CSS

...
.background-masker.content-top,
.background-masker.content-first-end,
.background-masker.content-second-line,
.background-masker.content-third-line,
.background-masker.content-second-end,
.background-masker.content-third-end {
    top: 70px;
    left: 0;
    right: 0;
    height: 15px;
}

.background-masker.content-first-end {
    top: 85px;
    left: 380px;
    height: 12px;
}

.background-masker.content-second-line {
    top: 97px;
    height: 8px;
}

.background-masker.content-second-end {
    top: 105px;
    left: 320px;
    height: 10px;
}

.background-masker.content-third-line {
    top: 115px;
    height: 9px;
}

.background-masker.content-third-end {
    top: 124px;
    left: 440px;
    height: 11px;
}

其它

当想改变具有动画效果的高度时,需要去调整各个div的位置的值。整体来说比较麻烦。所以设计之初最好在photoshop等工具上设计会比较好些。

Github地址

https://github.com/sottar/ui-placeholder

参考链接

http://qiita.com/sottar/items/218cc304e377cd034c88
