简介

通过读取图片的各个像素的颜色，填充到excel单元格中

环境

• ubuntu 16.04 lts
• excel 2016
• python 2.7
• opvencv 3.1

目录结构

.
├── excel_image.py
├── test.jpg
└── test.xlsx

代码解析

import cv2
from string import uppercase as AtoZ
from openpyxl import load_workbook
from openpyxl.styles import PatternFill

# 读取图片
image = cv2.imread("test.jpg")

# 载入Excel
wb = load_workbook(filename='test.xlsx')

# 活动的sheet获取
ws = wb.active

# 字母列表生成
# col_name = ['A', 'B', ...., 'Z']
col_name = list(AtoZ)

# excel列名生成
for i in xrange(len(image[0]) - 26):
    col_name.append(AtoZ[i // 26] + AtoZ[i % 26])

for col in xrange(len(image[0])):
    # 列的宽度调整
    ws.column_dimensions[col_name[col]].width = 0.3

for row in xrange(len(image)):
    # 行的高度调整
    ws.row_dimensions[row].height = 1.5

    for col in xrange(len(image[row])):
        # 红，绿，蓝的值转16进制,并将结果转为字符串
        red, green, blue = image[row][col]
        color = '%02x%02x%02x' % (blue, green, red)

        # 要填充的单元格名获取
        cell_name = col_name[col] + str(row + 1)
        # 设置单元格名
        cell = ws[cell_name]
        # 填充颜色
        cell.fill = PatternFill(patternType='solid', fgColor=color)

# excel保存
wb.save('test.xlsx')

运行

workon cv2 # 参考安装手册

python excel_image.py # ps. 程序执行时间受图片大小影响。图片越大，生成时间越久

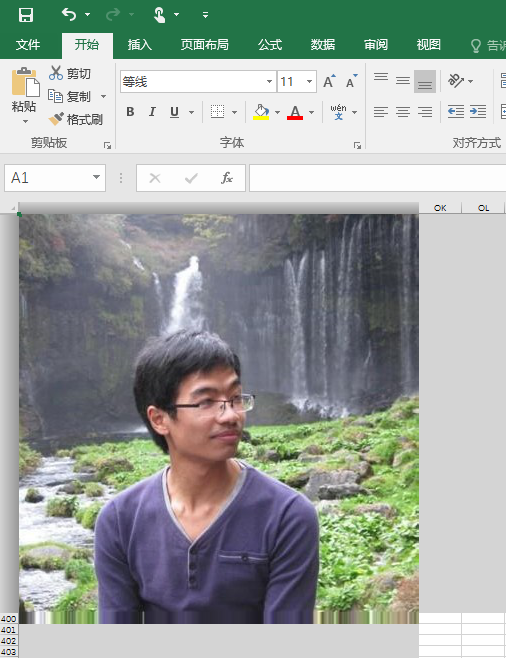

结果

参考链接

http://www.pyimagesearch.com/2016/10/24/ubuntu-16-04-how-to-install-opencv/ (环境安装)
https://qiita.com/Algebra_nobu/items/4e2b36bdb38434e183de
